7. Intella Connect Dashboard¶

7.2.1. Creating new case¶

Creating a new case in Intella Connect is straightforward.

After pressing Create case button located at the top of the cases list the Create case dialog will be shown.

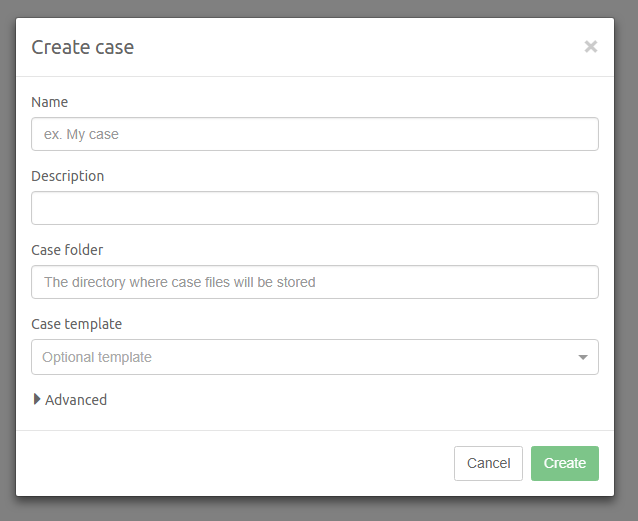

Please populate the form with case name, case description (optional) and desired path to the case folder. You can paste the case location from clipboard or click in the input to open a file system browser which allows for manual selection of case folder. If case folder cannot be used (ex. due to lack of file system permissions), detailed validation warnings will be presented. Optionally, you can specify the case template which will be used to initialize the case.

By expanding Advanced panel you can get access to additional configuration options. Setting the optimization folder can be used to speed up indexing by distributing certain database files during indexing across the case folder drive and the optimization folder drive.

After you’ve entered all data, press Create button. You will be presented with *Sources* page of newly created case where you will be able to add and index newly added sources.

7.2.2. Adding an existing case to the list¶

If you have existing case on the disk which is accessible to Intella Connect, then you can manually import it to the available cases list. In order to do that you will have to provide a path to the Case Folder (parent folder of a case.xml file).

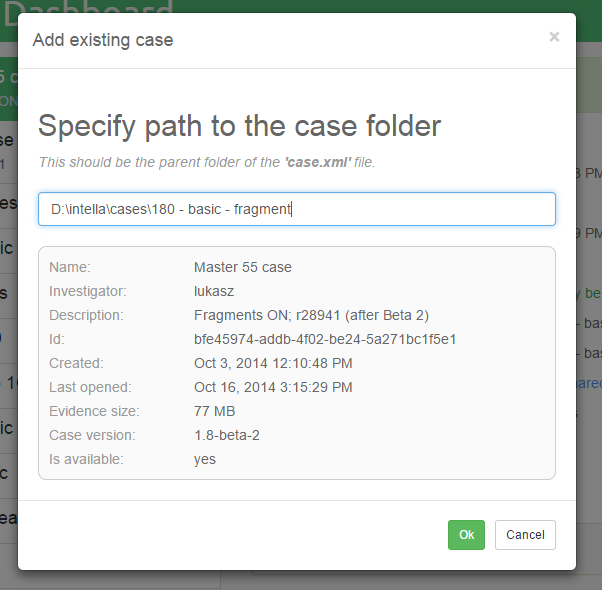

Click on the Add case button located at the bottom of the cases list. In the modal window, please type in the absolute path to the case folder. It’s the best to copy and paste it directly from Windows Explorer window. The server will then analyze provided path and if the case is found in that location, it will render basic details about the case. This is presented on the image below. If provided path is invalid, then appropriate message will be shown.

Intella Connect can also be configured to add cases automatically. For more information see General settings section.

7.2.3. Deleting an existing case from the list¶

Click on the Delete case button located at the bottom of the selected case details panel. In the modal window, leave the checkbox empty if the case should only be removed from cases list. Check the checkbox if the case should be removed from cases list as well as from disk.

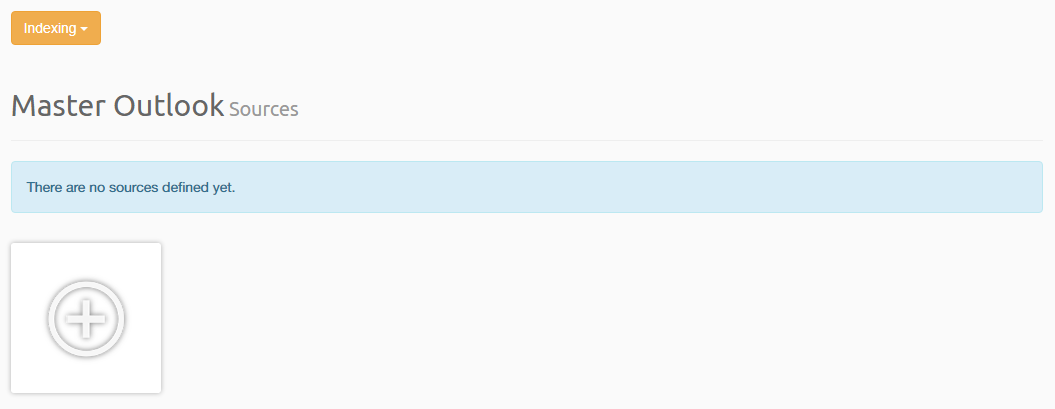

7.2.4. Case Sources management¶

You will be presented with this part each time new case is created or after Sources button in the case details panel is clicked.

Using this view it’s possible to:

• Add new sources.
• Edit sources.
• Remove sources.
• Re-Index entire case.
• Index new data.
• Import an overlay file.
• See overlay file import statistics.
• See latest indexing statistics.
• Close case which was previously opened for an indexing operation.

7.2.5. Case Templates¶

A case template is a collection of configuration settings, preferences and case metadata that can be exported from an existing Intella case and re-used for the creation of other cases. Case templates allow for initializing new cases quickly with predefined sets of tags, keyword lists, tasks, column settings, etc.

You can manage case templates in a dedicated view accessible under Cases / Templates. It allows for:

• Creating a new template, created from an existing case.
• Importing an existing template from Intella Case Template (“*.icf”) file
• Deleting case template
• Browsing contents of the case template

Creating a case template

To create a new template click on the Create button. This opens a modal window where you can specify for which case you want to create template, as well as the path and name of the Intella Case Template file. Please note that you can only select cases which are not currently shared. If you want to create a case for currently shared case, please unshare it first. This modal also allows you to choose components to include in the template. This is illustrated below:

The available template components are:

• Case preferences
• Saved Searches
• Column presets
• Indexing tasks
• Tags
• Custodians
• Content Analysis categories
• Keyword Lists
• MD5 lists
• Export templates
• Redaction profiles
• Excluded paragraphs
• Custom columns
• Load File import templates
• Coding layouts

Press the Create template button to create the template and add it to list of available case templates.

Using a case template

To apply a template when creating a new case select it in the Case template dropdown in the Create case dialog.

Importing a case template from file

Press the Import button to open the Import existing case template modal window. Provide a name of the template and select the Intella Case Template file from local file system. After pressing Import button, the file will be uploaded to server and this template will be added to the list of available templates.

Deleting a case template

To delete existing case template first select it in the dropdown of available templates. Then press Delete button. The following dialog will ask you for confirmation if you want to proceed with deletion, as this action cannot be undone.

Browsing contents of a case template

To see what case template contains, simply select it from the dropdown list. This will automatically populate the view with components included in this template.

7.2.6. Case Merging¶

You can merge two cases in a dedicated view accessible under Cases / Merge, as illustrated below:

Items in a case can be exported to another case. We refer to these as the source case and target case, respectively. This functionality supports several use cases:

• Exporting selected items to a new (and empty) case, e.g. to filter privileged information or irrelevant items, or to divide the work among reviewers in such a way that each reviewer only has access to their own assigned subset.
• Merging of two or more cases to create one unified case, or to import the work done on a previously exported case back into the main case.

When items are exported to another case, Intella will add the related sources to the target case, and the items will be added to those new sources. However, when the target case is a copy of the source case, or if items from the source case were exported to the target case before, then the target case can already contain these sources. In such cases Intella will add the exported items to the existing sources. Any items that already exist in the target case will not be added again. Subject to the selected export options, the associated data like tags and comments will be copied though.

Exporting items to a case will increase the registered case size of the target case. Intella calculates the increase based on the size of the selected items and their (recursive) parent items, as far as these contributed to the case size of the source case. For example, exporting a set of email items from a PST file that was stored in a crawled file system folder will increase the size of the target case with the size of that PST file. When the to-be-exported items were indexed with Intella 2.1.1 or older, the required information is not available though, and Intella will add the full size of the source case to the target case instead.

You can export either a subset or all items from selected case. To export a subset of items to another case, use the following procedure (if you want to export all items skip to next list of steps):

• Open a shared case from which you want to export items.
• Run a query that contains all the to-be-exported items and tag them with a tag of your choosing.
• Unshare this case.
• From Admin Dashboard navigate to Cases / Merge.

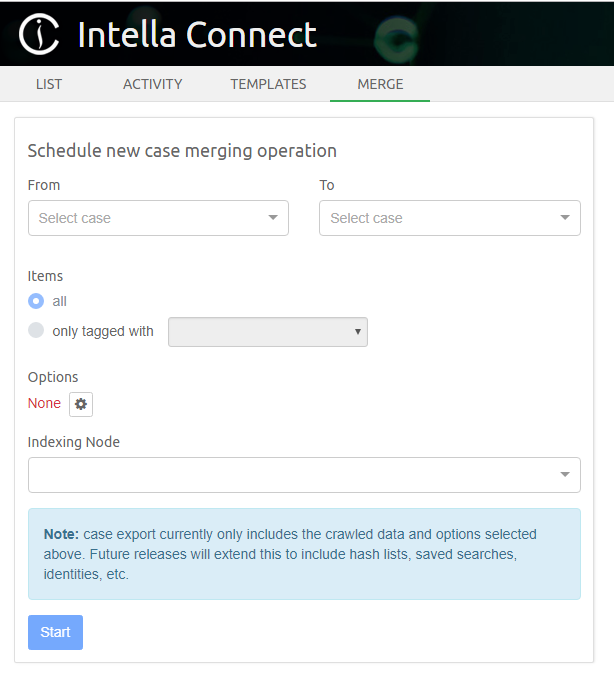

This view allows to schedule a new case merging operation. In order to do this:

• Select Source and Target cases using two dropdown lists (see note below on which cases can be used).
• Select which items you want to export. If you want to export a subset of items, select a tag using dropdown. This will cause only items tagged with selected tag to be exported.
• Select at least one merging option using the modal window (see next paragraph for details).
• Select an instance of Intella Node which is currently available to accept an indexing operation.
• Press Start to begin merging operation.

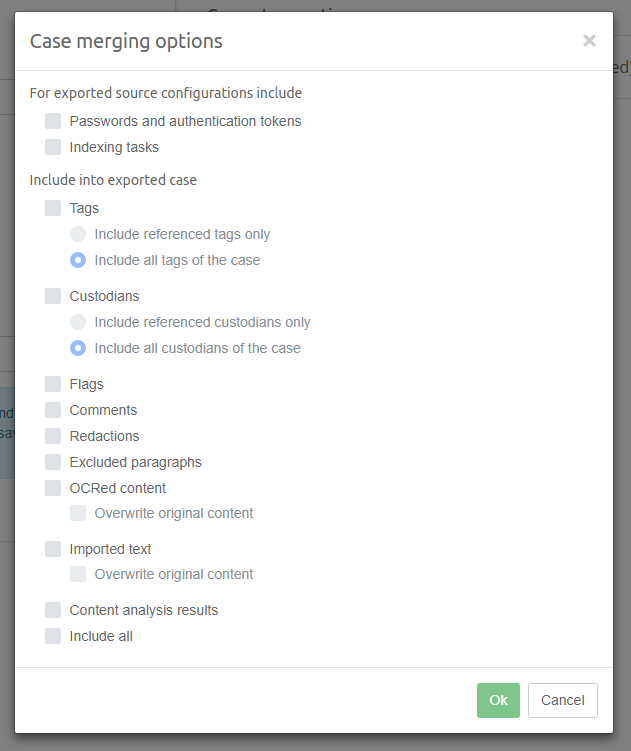

Case Merging Options

This modal window allows you to specify which information should be included in the export, along with the item content:

• Passwords and authentication tokens that are stored in source configurations (IMAP, iCloud, etc.). When these are not included in the export, the source cannot be re-indexed in the target case.
• Indexing tasks defined in source configurations.
• Tags that are referenced by exported items, or the complete tags hierarchy defined in the source case.
• Custodians that are referenced by exported items, or all custodians defined in the source case.
• Flags.
• Comments.
• Redactions.
• Excluded paragraphs.
• OCRed content, with an option to overwrite existing OCR content in the target case for exported items that already exist in the target case.
• Imported text, with an option to overwrite existing imported text in the target case for exported items that already exist in the target case.
• Content Analysis results.

Locking and closing cases

During case merging Intella Connect will open and lock both Source and Target cases. Once the operation finishes (either with success or error) both cases will be closed and the Target will get unlocked. However, the Source case will still be locked. In order to unlock it you need to click on the Finish case merging in the case details panel.

Item stubs

When items are exported without their parents, their parents will still be represented in the target case by item stubs. These stubs are necessary to show the context of the exported item. An item stub contains a minimal set of metadata of the original parent item, such as its name, location and type.

Intella will record the start and end of the export process in the event logs of both the source case and the target case. Besides the user and timestamp, these events record:

• The Case ID of the case that the items were exported to/imported from.
• The Case name of the case that the items were exported to/imported from.
• A unique Event ID that can be used to identify corresponding import and export events in source and target cases.

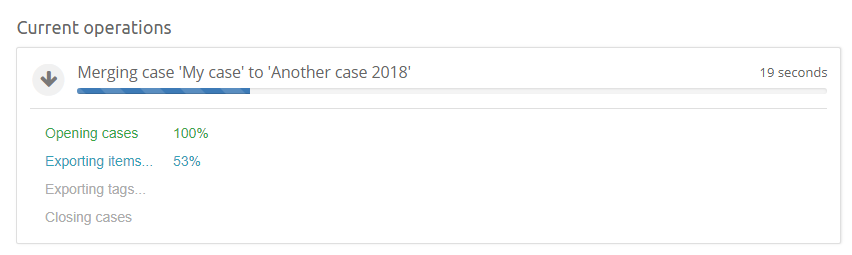

Tracking case merging progress

Once case merging operation starts you will be able to track its progress in the details panel on the right. This panel, once expanded by clicking on the arrow icon, will show detailed progress of each step of case merging operation.

7.3.1. Intella Connect Grid¶

If you are running more than one Intella Connect servers then likely you could benefit from configuring them as a part of the same Grid. This feature allows reviewers to have a single point of entry to all Intella Connect servers. This simplifies case management in larger organizations, as reviewers do not need to be aware which Intella Connect server is hosting the case.

For this feature to work, each server forming a Grid must have LDAP integration enabled. This is required to establish a consistent user base for each of the servers.

It’s imperative to manually pick one server which will act as a single point of entry for the Grid and apply any configuration there. Other Grid servers do not need to be further configured (assuming that LDAP configuration was already applied).

It’s common in networking to identify servers interchangeably by their IP, domain or network name (ex. IP 1.1.1.1 matching pc1.mycompany.com). However when Intella Connect server is being added to the Grid only one URL will have to be provided and will be used as a unique identifier of the server. For security reasons these URLs will be used internally to validate the origin of requests accepted by Grid servers. Therefore the grid might not work properly if you set up a server using it’s IP address and then later are accessing it using its domain name.

The same rule applies to the server which acts as a single point of entry. You must make sure to apply any grid configuration using the URL which will later be used to access user dashboards.

Example

This example will walk you through the hypothetical use case of setting up Grid in a company distributed across three continents. It gives you some general guidelines how to approach this task and stresses points which should be discusses with your IT department.

Let’s say that we have three Intella Connect servers running in our company. Here are their details:

• Server1; IP=1.1.1.1; domain=connect.mycompany.com; Location: London
• Server2; IP=2.2.2.2; domain=newyork.mycompany.com; Location: New York
• Server2; IP=3.3.3.3; domain=sydney.mycompany.com; Location: Sydney

Until now there was no strict policy as to how to access those servers so users were using different mix of IPs or domains. The first step is to define a scheme of addressing our servers. We decided to rely on domain/subdomain names as IPs are too fragile to rely upon them. We also decided to promote the Intella Connect server located in London to become our single point of entry. We also asked our IT department to disallow direct access to server by IP (as an additional precaution).

In the next step we went through all three servers and made sure that each one of them is using the same LDAP provider. It turned out that the one in New York had a bunch of local accounts which were interfering with LDAP (username clashes) so we decided to clean this up and create LDAP accounts for those people.

After that we logged in to connect.mycompany.com (entry point) to set up Grid there. Under Remote Servers > Intella Connect Grid > Known servers we added the remaining two servers. The first one as:

• Name: New York
• URL: http://newyork.mycompany.com

And the second one as:

• Name: Sydney
• URL: http://sydney.mycompany.com

Right after that they were added to Known Servers list with the online status.

We then validated the setup by sharing 1 case on each of the servers and logged in to User Dashboard on the server which we chose as single point of entry (http://connect.mycompany.com). User was successful presented with a list of cases showing three entries.

7.3.2. Intella Nodes¶

Intella Connect can make use of unlimited number of remote Intella Nodes to perform remote indexing. For installing and setting up an Intella Node please see Installing and starting Intella Connect/Node section.

Using this view it’s possible to add/edit/remove remote Intella Nodes that can be used to perform remote indexing.

Make sure that remote Intella Node server is properly running and is directly accessible via network on particular IP and port.

Detected host name and port which can be used when adding new Intella Node can be found on the Intella Node’s local status page.

The IP address that is being detected by Intella Node can be just one of addresses on which that computer can be reached and it might not be always the best one to use. There are few examples that come to mind:

• your computer can have multiple networking interfaces, such as 1Gb/s TP (twisted-pair) ethernet network card and WI-FI network card. If you would connect both of those to different routers or switches, then your computer will be assigned two IP addresses and you can be reached by either of those. In this case you might want to use IP address assigned to the cable-connected network card rather than WI-FI as it might be faster. It could happen, however, that the IP address shown as detected is the one from your WI-FI network card.
• a router or switch to which your computer is connected can be configured to have multiple subnets. That means that the IP address and network mask will depend on the interface to which you are connected on that router or switch. Not much to do here unless you are also network administrator and you understand how the router was configured and how the computer is connected.
• your computer can be reachable on multiple IP addresses and ports even if you have just one network interface connected in your computer. For example: localhost:9999 or 127.0.0.1:9999 (also known as loop-back interface, which points to your own computer), 192.168.1.109:8082 (your local network on your directly connected router), 192.168.0.159:8081 (your company network on your second hop router), 85.74.198.115:80 (your public address). In this case you might want to use IP address which will make least hops on the route to server.

Please note that these are only simple scenarios and there can be much more complex network topologies and configurations. It really depends on what network you have and how it is built and configured. The detected IP address is being read from system configuration, it is not an algorithm that would detect your network and perform speed and reliability measurements to determine what exact address to use. It is meant to be a hint rather than anything else. When in doubt about which IP address to use, please consult your IT/network administrator.

When you have gathered all relevant data (host, port) you can add new remote Intella Node by clicking on the plus sign when hovering mouse over UNUSED remote remote Intella Node slot or by clicking on the button Add Intella Node.

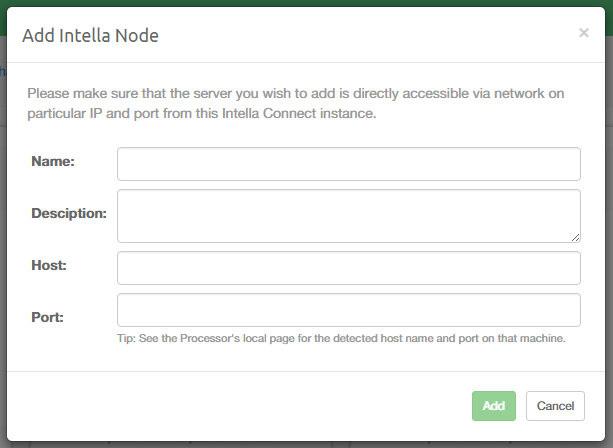

The Add Intella Node dialog will be shown.

Enter name, description, host and port. After pressing Add the Intella Node will show up in the remote Intella Nodes list with status Connecting… which indicates that there is a check being made whether remote Intella Node is up and running and is reachable.

If all entered data were correct and remote Intella Node server was reachable the status of the newly added Intella Node should be Idle which indicates that Intella Node is ready to be used for remote indexing. Connection error status indicates that server is not reachable. If that happens you should check whether:

• Remote Intella Node is properly running which can be done by opening it’s local page.
• Entered data (host, port) were correct.
• Remote Intella Node server is reachable from Intella Connect Server.

7.3.3. Shared folders¶

Shared folders management is actually a way of logically organizing shared folders that are based on UNC paths.

Each defined folder represents specific type of location:

• Evidence location - folder where evidence resides.
• Cases location - folder where cases reside.
• Optimization location - folder used for optimization.

When such Shared folders are defined, the user is able to access them in a file selection tree under Shared folders branch next to Local Server disks.

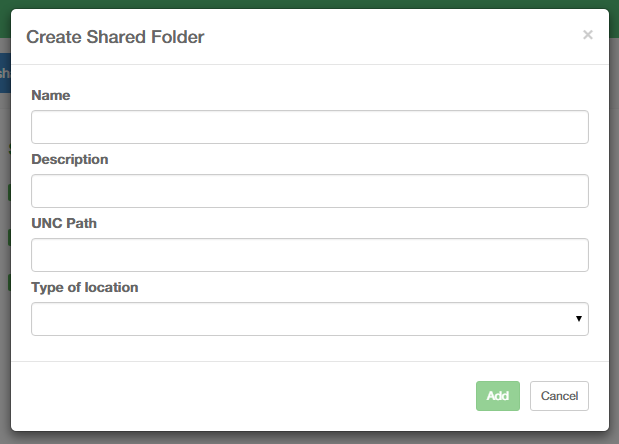

To add a new shared folder, click Add shared folder

Enter name, description, UNC path and select type of the location that folder represents. After pressing Add Remote folder will be added to the list of the Remote folders.

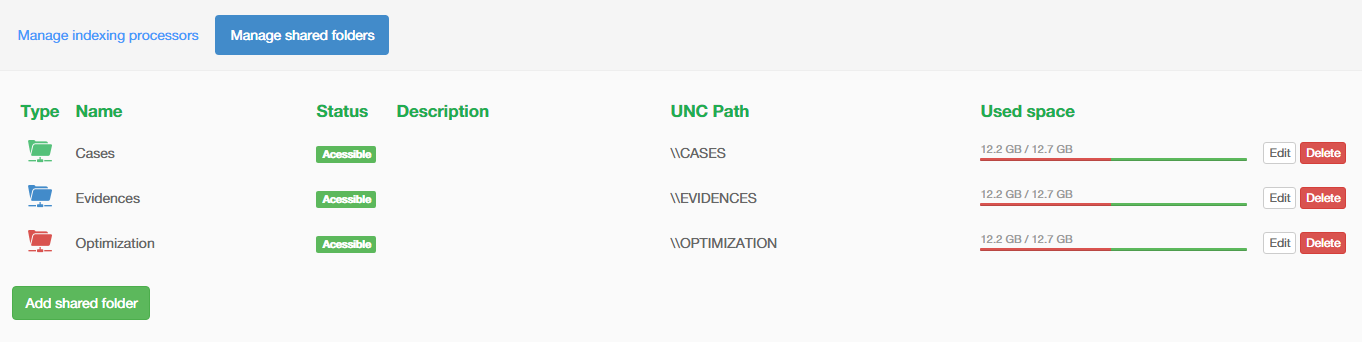

You can see Shared folders in action on this particular screenshot:

Note that only Shared folder “Cases” representing Cases location is shown when specifying Case location in order to prevent selecting folders representing other locations (Evidence location, Optimization location).

7.5.1. General¶

7.5.2. Branding¶

Intella Connect can be partially or fully branded with a custom logo of your choice. The process of setting this up is pretty straightforward. It’s just the matter of uploading image files. You can also optionally align the logo appearing in the Intella Connect header, so that it appears in the correct location.

You can find more details on this topic in Branding section.

On login page

This logo appears on the login page, where user signs in to application.

In application headers

This logo will be shown in the Intella Connect header (top of the screen), as well as in various places inside the application’s User Interface.

Header logo alignment

By adjusting the value in this field you can control the vertical alignment of the logo located in the header.

7.5.3. SSL¶

Intella Connect supports protecting your server with a secure HTTPS communication layer. The details on how to set it up is a part of a separate guide available here: SSL setup.

7.5.4. LDAP¶

Intella Connect can be integrated with an LDAP server. This integration allows for the user base available in LDAP being used by Intella Connect. The details on how to set it up is a part of a separate guide available here: LDAP setup.

7.5.5. ABBYY¶

When you have access to an ABBYY Recognition Server, you can utilize it to OCR selected items in the case fully automatically. The configuration specified here will apply to all cases shared by this Intella Connect server.

Before attempting to configure this section, please make sure that your ABBYY Recognition Server is configured correctly:

• The Web Service component is installed.
• You can open the Service URL in a browser and it shows: RSSoapService. The following operations are supported….

Host

IP address of machine hosting ABBYY Recognition Server. The Service URL field will be populated automatically based on the entered value.

Version

The version of ABBYY Recognition Server installed. The Service URL field will be populated automatically based on the entered value.

Use custom service url

If you know that your server uses a different URL, you can override it by checking the Use custom service URL check box. This will cause the Service URL field to become editable.

Service URL

The value of this field will be automatically generated based on input in other fields. It should point to the appropriate SOAP service of the ABBYY Recognition Service.

Workflow name

Specify the workflow name that should be used. Alternatively, you can press the Get list from server button to select a value from all available workflows on that server. This button can also be used to validate connection to ABBYY Recognition Server.

Number of workers

Specify the number of workers to let the Recognition Server process more than one document at a time. The optimal number of workers depends on the Server capabilities (in particular the number of CPU cores on the server) and is also restricted by the server’s license (the number of CPU cores allowed to be used by the Recognition Server license). The number cannot exceed 64.
